Our new Inline controller can now be used for AGM/Standard flooded. Gel, and Lithium 12 V batteries with a simple button to change battery types. The controller now has an LCD screen showing Battery voltage and current along, temperature, and any errors.

Connect your Overland Solar Bugout 130 directly to a 12V battery with our plug-and-play MPPT Charge Controller Bundle.

Designed to maximize available solar power using maximum power point tracking technology, this controller is automatically charges your battery appropriately based on available power and stage of charge. The kit includes two methods of connecting to your battery, either clamp directly or use the included SAE connection which is the most common connection for external charging campers and trailers. SAE female is positive. This kit can be used with any Bugout 130

Features

Water Resistant Housing (IP45)
Wired and ready to plug into the solar charger and battery
“Set it and Forget it” – sets up in less than 1 minute with automatic settings
Comes with our standard warranty,

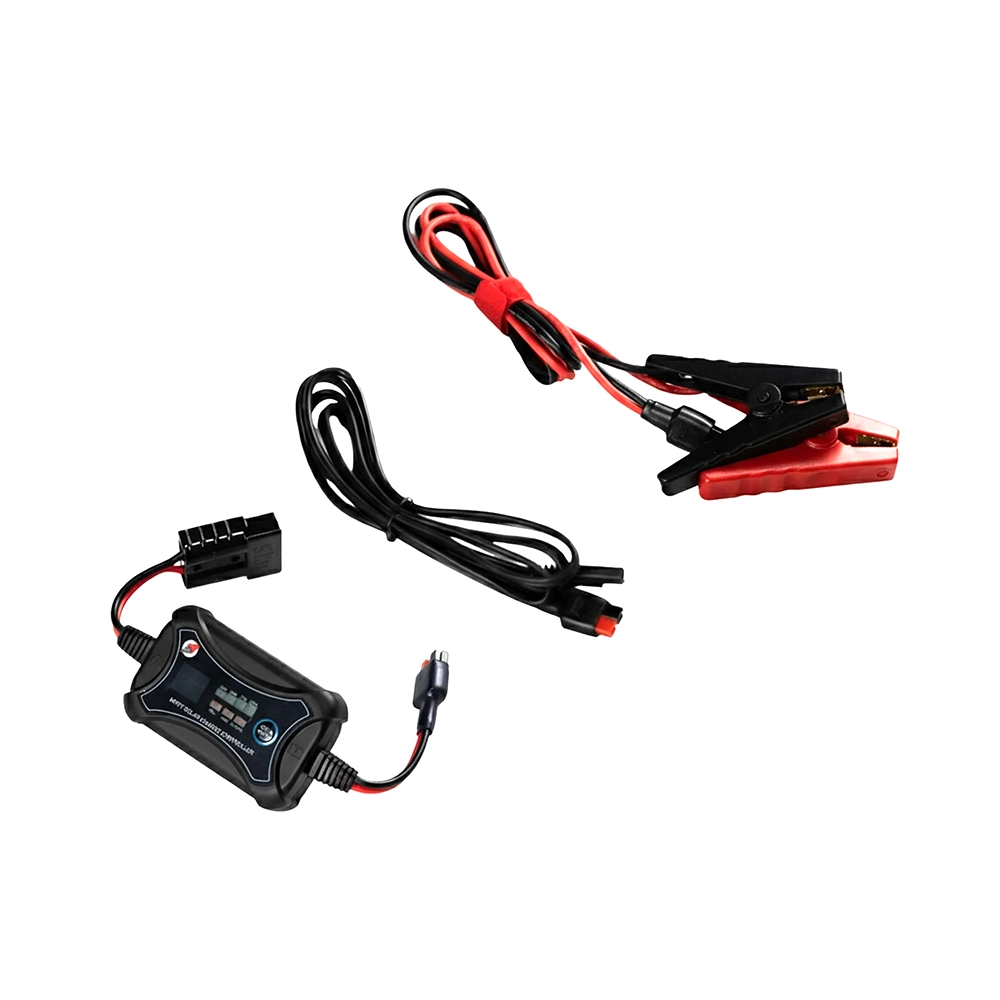

Kit Includes

10 amp controller with Anderson SB50 solar input and mini Anderson outbut
Large Alligator clamps with mini Anderson quick connect to the controller
Five Foot mini Anderson to SAE (female positive)

Specifications

Maximum open circuit voltage – 30V
Maximum solar power – 150W
Operating Temperature -4 to 113 F

AGM/Standard flooded
Boost/Bulk Voltage – 14.4V
Float Voltage – 13.8V
Equalize – 14.6V

Lithium
Boost/Bulk 14.4V
“Float” 14.4V

Gel
Boost/Bulk Voltage – 14.2V
Float Voltage – 13.8V
